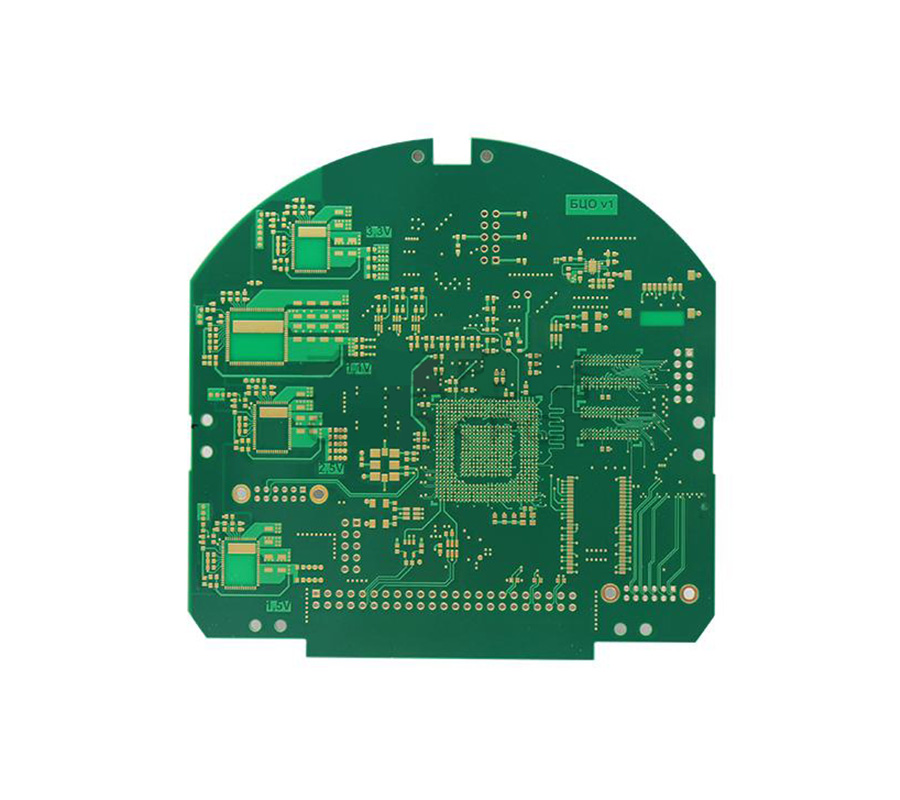

This HDI buried blind hole PCB is one of the series of buried blind hole HDI PCBs developed and produced by Shenzhen Dafengwang Electronics Co. Digital cameras, notebooks, cell phones and other electronic digital products and automotive electronics.
Layer:14L
Material: raw benefit S1000-2M
Plate thickness:1.6+0.1mm
Copper thickness:1oz
Surface treatment: sunken gold, thickness: 0.05um
Outer layer line width/line spacing:75/75um
Minimum hole diameter: laser hole: 0.15mm; mechanical hole: 0.20mm, hole diameter ratio: 8:1
Solder blocking character color: green oil white character
