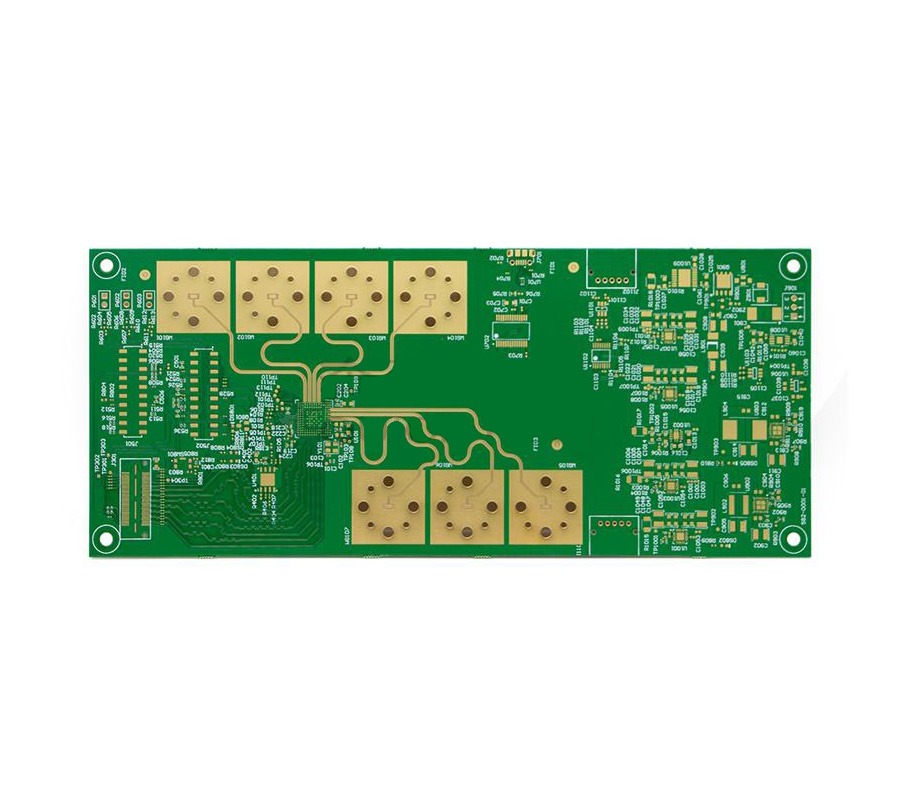

6-layer RF antenna PCB circuit board is one of the series of multilayer PCB circuit boards developed and produced by Shenzhen Dafengwang Electronics Co., Ltd, which is produced by mixing and pressing of high frequency material + high Tg material and surface sinking gold and other processes. The circuit board is widely used in the field of artificial intelligence and 5G RF antenna.
Number of layers:6L
Material: high frequency material + high Tg material mixed press board
Board thickness:1.0mm+0.1mm
Copper thickness:1oz
Surface treatment: sunken gold, thickness: 0.05um
Outer layer line width/line spacing:95/90um
Minimum hole diameter: mechanical hole: 0.2mm plate thickness hole diameter ratio: 5:1
Solder resist character color: green oil white character
