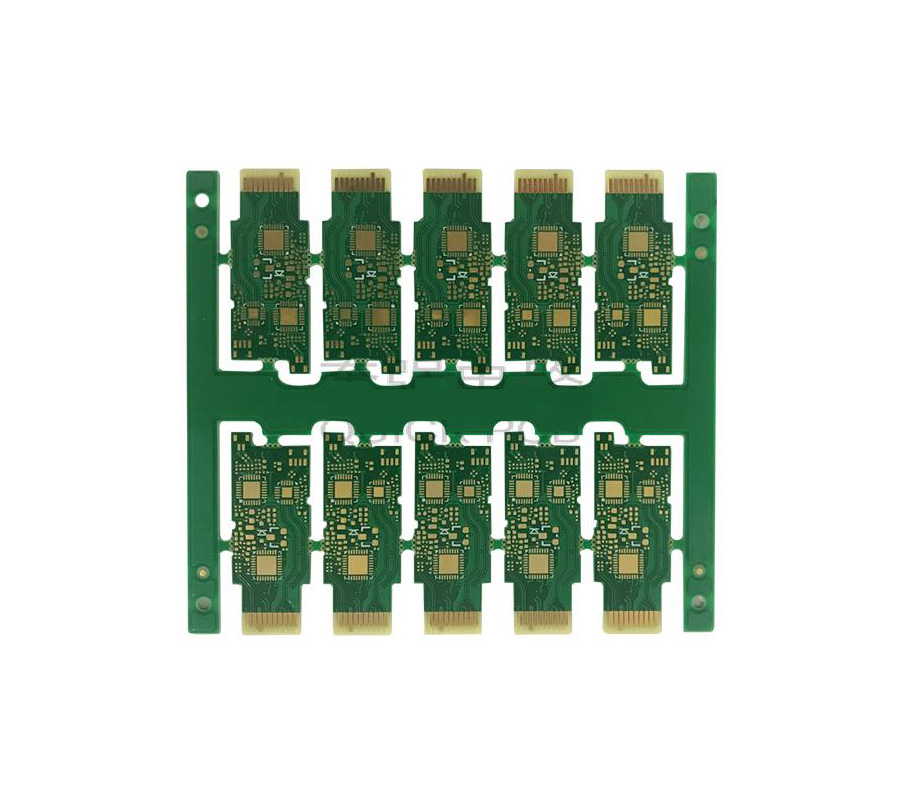

4G optical module circuit board is one of the series of optical module PCBs developed and produced by Shenzhen Dafengwang Electronics Co., Ltd, which is widely used in fiber optic communication and other fields. The optical module PCB is made of SangYi S1000-2M material, surface gold plating and local thick gold plating production process, aperture diameter up to 0.15mm, line width line spacing up to 120/85m, is the ideal circuit board products for fiber optic communication equipment.
Layer:10L
Material: Sheng Yi S1000-2M
Plate thickness:1.0±0.1mm
Copper thickness:1oz
Surface treatment: gold plated 2u" + partial gold plated 50u"
Outer layer line width/line spacing:120/85um
Minimum hole diameter: through-hole: 0.15mm; mechanical hole: 0.15mm
Solder resist character color: green oil white character
