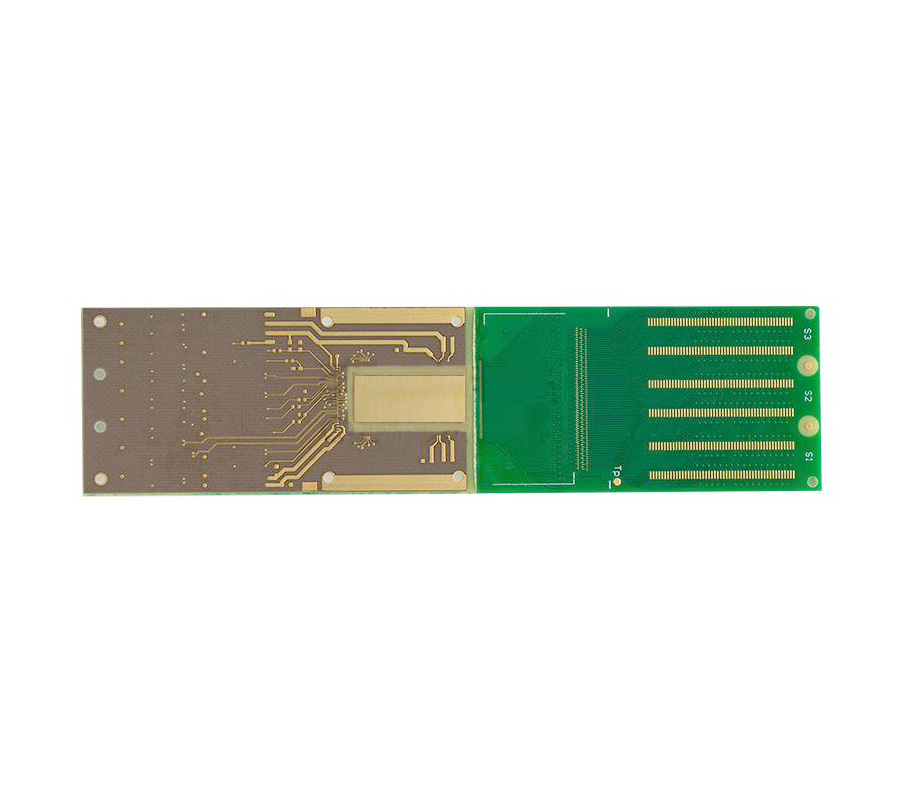

Ltd. is one of the series of HDIPCB circuit boards with buried blind holes, which are manufactured by the production process of S1000-2M material, nickel-palladium-sunk surface and laser blind holes. The line width and line pitch can reach 65.65um, which is a better choice for the related testing industry.
Material: Sheng Yi S1000-2M
Plate thickness:1.3±0.13mm
Copper thickness:1oz
Surface treatment:Immersion nickel palladium gold, thickness:3u"
Outer layer line width/line spacing:65/65um
Minimum hole diameter:Laser blind hole:0.1mm
Solder resist character color:green oil white character
Next：6-layer 2nd order HDI blind buried hole semiconductor PCB test board
