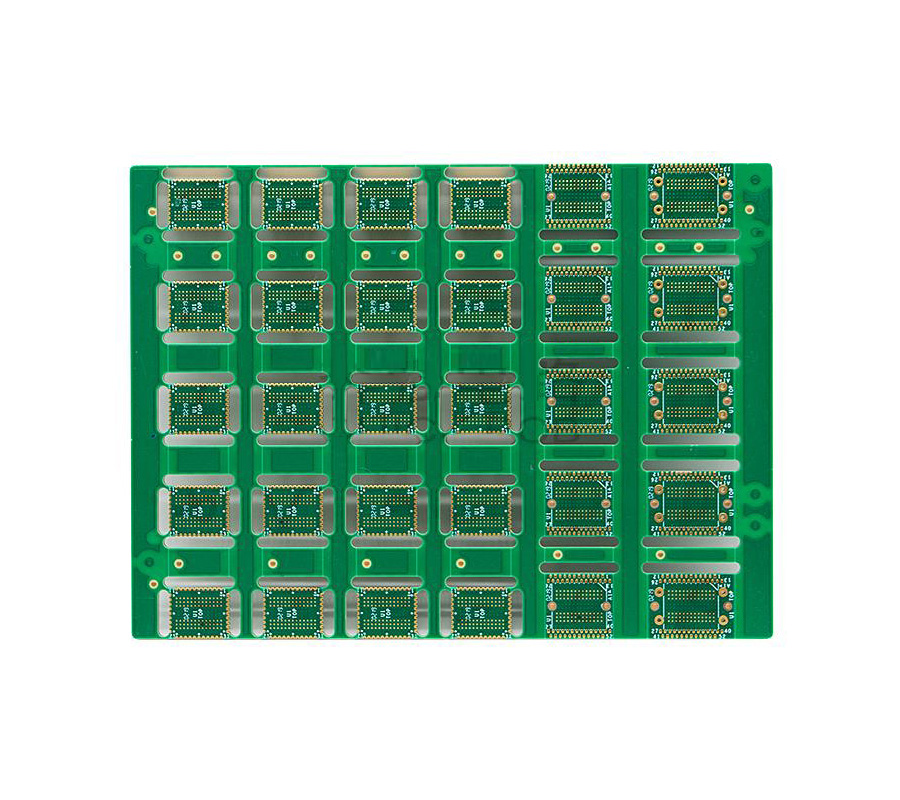

Ltd. is one of the 3rd-order HDI PCB series with blind buried holes, which is made of Panasonic R5775G + Lianmao IT180 high-speed material, and manufactured by the production process of mixed pressing, buried resistance and surface gold deposition, etc. The products are widely used in GPS, BeiDou, Galileo, GLONASS and other GPS terminal equipment.
Number of layers:8L
Material: Panasonic R5775G + Lianmao IT180
Board thickness:2.0±0.2mm
Copper thickness:1oz
Surface treatment: sunken gold, thickness: 0.05um
Outer layer line width/line spacing:75/75um
Minimum hole diameter - laser blind hole: 0.1mm, mechanical hole: 0.2mm, plate thickness hole diameter ratio 10:1
Solder blocking character color:green oil white character
