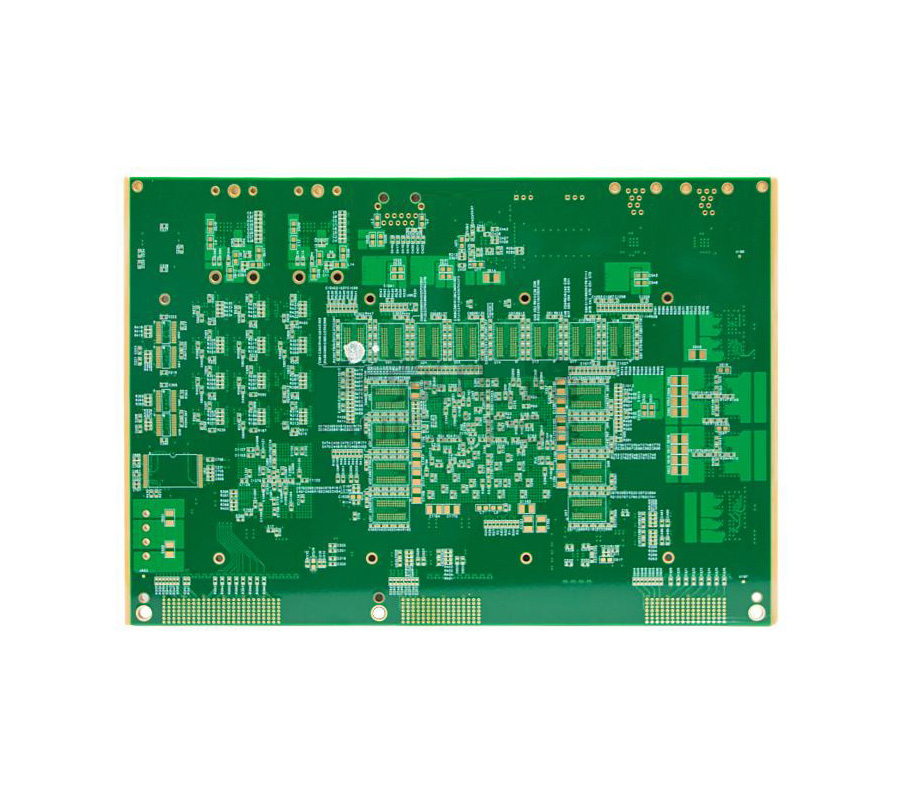

24 layer high-density aerospace PCB
  • 24 layer high-density aerospace PCB
  • 24 layer high-density aerospace PCB
24 layer high-density aerospace PCB
The 24-layer high-density height aerospace PCB is one of the series of high-rise PCBs developed and produced by Shenzhen Dafengwang Electronics Co. This PCB is widely used in the aerospace field.

Consult immediately >

Product details

Layer:24L


Material: Taiyo TU872SLK


Plate thickness:3.2±0.32mm


Copper thickness:1oz


Surface treatment: sunken gold, thickness: 0.05um


Outer layer line width/line spacing:75/75um


Minimum hole diameter: mechanical hole: 0.25mm, hole diameter ratio 12.8:1


Solder resist character color: green oil white character
