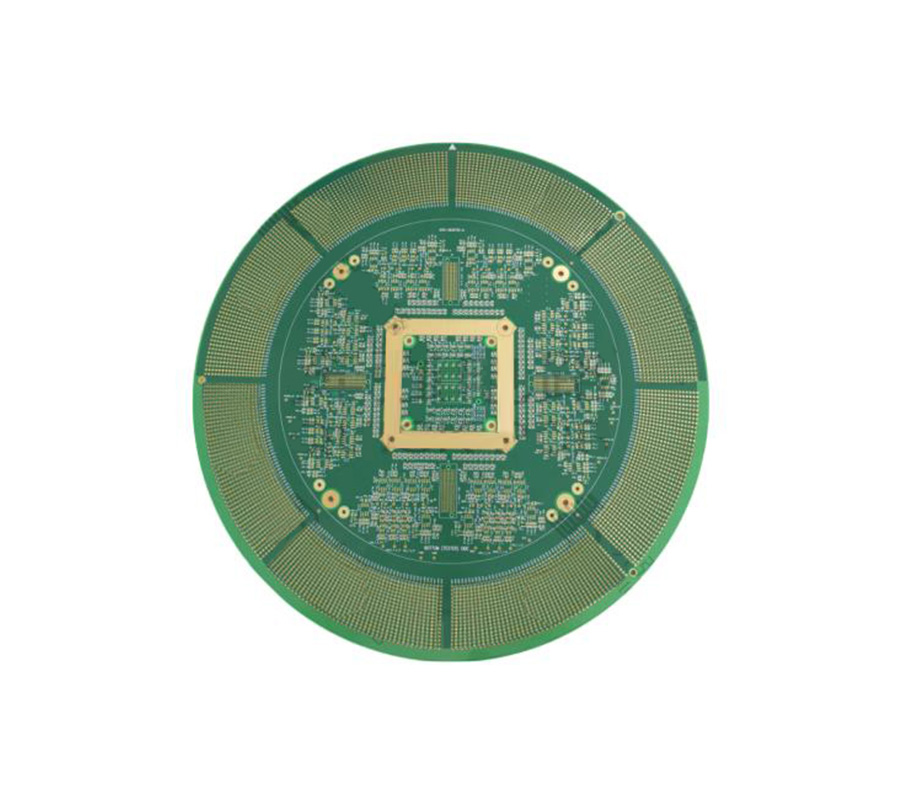

36-layer HDI semiconductor test board is a kind of high level PCB circuit board developed by Shenzhen Dafengwang Electronics Co., Ltd. and a kind of 1st order buried blind hole HDI PCB circuit board, mainly used in the field of integrated circuit testing.
Layer:36L
Material: High Tg180, Lianmao IT180
Board thickness:4.8mm
Copper thickness:1oz
Surface treatment: copper plating greater than 20um
Outer layer line width/line spacing: 0.125mm
Minimum hole diameter: 0.1mm
Solder resist character color: green oil white character
