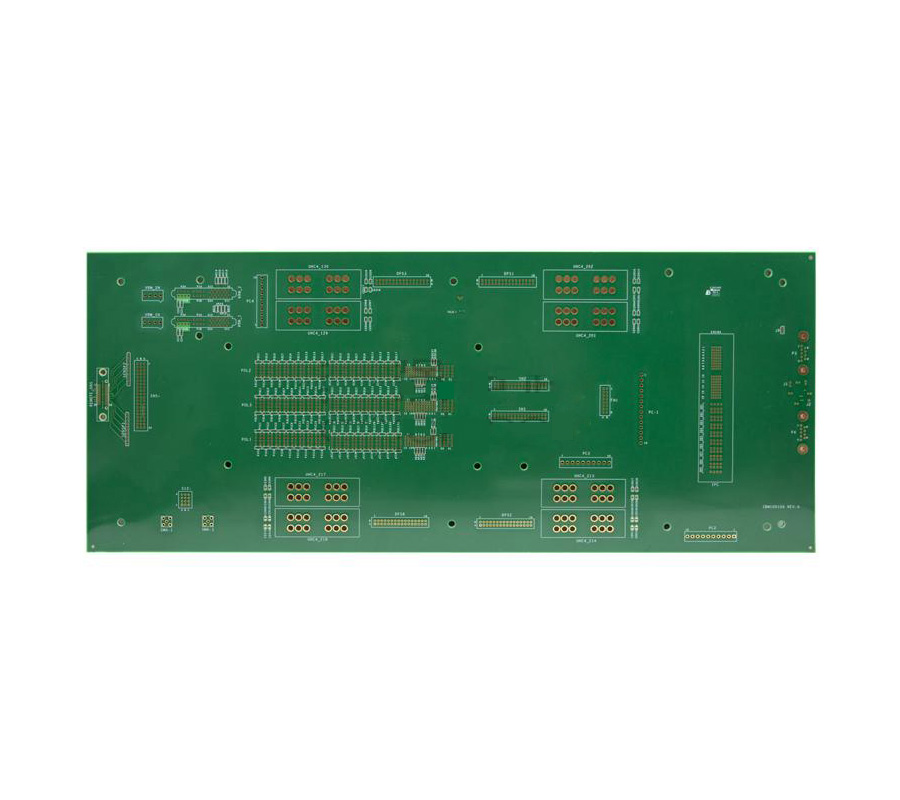

The 16-layer thick gold-plated semiconductor test board is one of the series of high-level PCBs developed and produced by Shenzhen Dafengwang Electronics Co.
Layer:16L
Material: Sheng Yi S1000-2M
Plate thickness:4.2mm±0.3mm
Copper thickness:2oz
Surface treatment: whole board gold plated 50u"
Outer layer line width/line spacing:200/200um
Minimum aperture: mechanical hole: 0.35mm board thickness aperture ratio: 12:1
Solder resist character color: green oil white character
