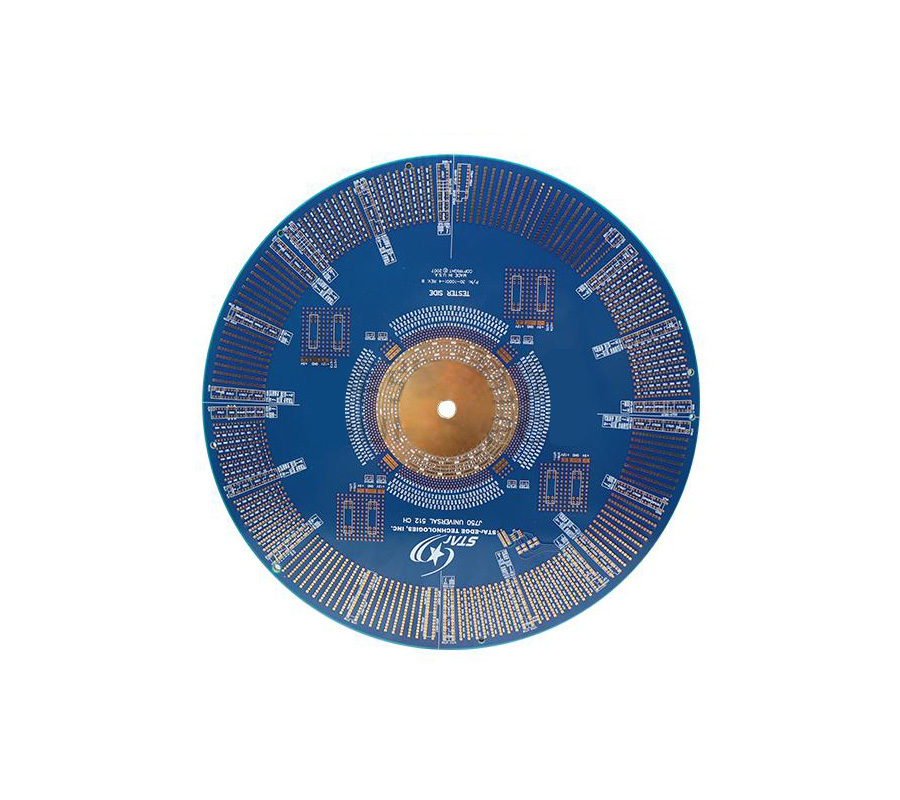

16-layer high thickness-to-diameter ratio semiconductor thick gold PCB board is one of the series of high-rise PCB boards developed and produced by Shenzhen Dafengwang Electronics Co., Ltd, mainly used in the field of semiconductor testing, 16-layer structure, using the raw benefit S1000-2M material, the whole board plating thick gold production process.
Layer:16L
Material: Sheng Yi S1000-2M S1000-2M
Plate thickness:6.5mm±0.3mm
Copper thickness:1oz
Surface treatment: whole board plated with thick gold 50u"
Outer layer line width/line spacing:250/250um
Minimum hole diameter: mechanical hole: 0.45mm plate thickness hole diameter ratio: 14:1
Solder resist character color:blue oil white character
